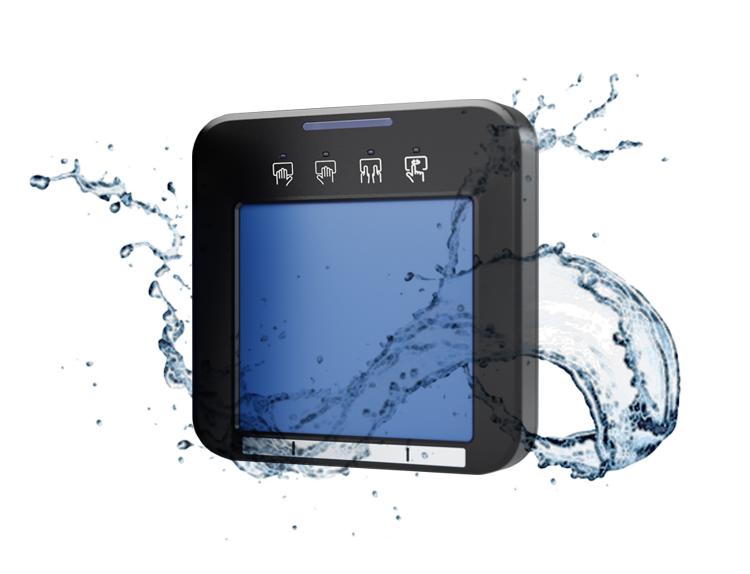

RealScan S60 is the FBI Appendix F certified, FAP60, Ultra Slim, and Lightweight fingerprint live scanner. RealScan S60 provides advanced artificial intelligence-based live finger detection technology compliant with ISO/IEC 30107-3 PAD Level 1 & 2 Standard. Applying LFD technology, RealScan S60 distinguishes fake fingerprints made from various materials, including clay, rubber, silicon, glue, paper, film, and more. Due to the small and thin form factor, it is optimized for desktop solutions and easy integration into portable devices, providing a significant advantage for customers to maximize the benefit from their product and solution.
Flat(Four/Two/Single) and Rolled(Single) fingers
Optical TFT
500 ppi
8-bit, 256 levels
Four finger slap: 1600 x 1500 pixels
Two finger flat: 900 x 900 pixels
Single flat / Roll: 800 x 750 pixels
Xperix, ISO 19794-2, ANSI 378 by Image SDK
RAW, BMP, WSQ, JPEG2000, ISO19794-4
AES-256 by Image SDK
Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),
Mobile ID FAP 60 (Appendix F)
Windows 7 or higher 32/64bit,
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit,
Android 5.0 or higher
220 g
83.3 mm x 78.2 mm
81.28 mm x 76.2 mm
118 mm x 120 mm x 19.3 mm
Optic Glass + AR coating (Pencil 6H)
IP65 (Sensor Surface)
-10 °C - 55 °C (-50 ℉ - 131 ℉)
10% - 90%, non-condensing
USB 2.0 High Speed, USB-C
USB Host
5.0V ±10%
Supported (by AI-based, ISO/IEC 30107-3 PAD Level 1 & 2 Compliant)
Buzzer
Supported
Not Supported
FBI, CE, FCC, KC, RoHS, USB-IF, IEC 62471, WEEE, REACH, WHQL, UL, PAD Level 1 & 2 by BixeLab
